Keep guard is gamemob with just different brain and load from other DB table. More...

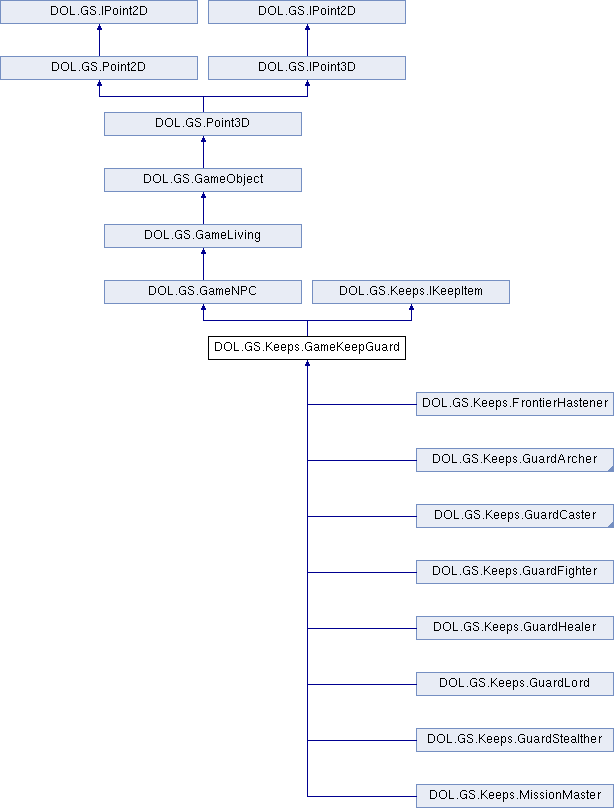

Inheritance diagram for DOL.GS.Keeps.GameKeepGuard:

Public Member Functions
override double	GetArmorAbsorb (eArmorSlot slot)
	Calculates armor absorb level.
override int	AttackSpeed (params InventoryItem[] weapon)
	Here we set the speeds we want our guards to have, this affects weapon damage.
override void	StartAttack (GameObject attackTarget)
	Override for StartAttack which chooses Ranged or Melee attack.
void	GuardStartAttackCheckLOS (GamePlayer player, ushort response, ushort targetOID)
	We only attack if we have LOS.
void	GuardStopAttackCheckLOS (GamePlayer player, ushort response, ushort targetOID)
	If we don't have LOS we stop attack.
void	GuardStartSpellHealCheckLOS (GamePlayer player, ushort response, ushort targetOID)
void	GuardStartSpellNukeCheckLOS (GamePlayer player, ushort response, ushort targetOID)
override bool	IsObjectInFront (GameObject target, double viewangle, bool rangeCheck=true)
	Because of Spell issues, we will always return this true.
override void	OnAttackedByEnemy (AttackData ad)
	Static archers attack with melee the closest if being engaged in melee.
override void	Die (GameObject killer)
	When guards Die and it isnt a keep reset (this killer) we call GuardSpam function.
int	GetEnemyCountInArea ()
	Gets the count of enemies in the Area.
override bool	AddToWorld ()
	When we add a guard to the world, we also attach an AttackFinished handler We use this to check LOS and range issues for our ranged guards.
override bool	RemoveFromWorld ()
	When we remove from world, we remove our special handler.
void	StopRespawn ()
	Method to stop a guards respawn.
override IList	GetExamineMessages (GamePlayer player)
	Gets the messages when you click on a guard.
override string	GetPronoun (int form, bool firstLetterUppercase)
	Gets the pronoun for the guards gender.
override void	LoadFromDatabase (DataObject mobobject)
	Load the guard from the database.
void	DeleteObject ()
override void	Delete ()
	Marks this object as deleted!
override void	DeleteFromDatabase ()
	Deletes the mob from the database.
void	LoadFromPosition (DBKeepPosition pos, GameKeepComponent component)
	Load the guard from a position.
void	MoveToPosition (DBKeepPosition position)
	Move a guard to a position.
void	ChangeGuild ()
	Change guild of guard (emblem on equipment) when keep is claimed.
override void	WalkTo (int tx, int ty, int tz, short speed)
	Adding special handling for walking to a point for patrol guards to be in a formation.
override void	WalkToSpawn ()
	Walk to the spawn point, always max speed for keep guards, or continue patrol.
Static Public Member Functions
static void	AttackFinished (DOLEvent e, object sender, EventArgs arguments)
	We need an event after an attack is finished so we know when players are unreachable by archery.
static void	GuardSpam (GameKeepGuard guard)
	Sends message to guild for guard death with enemy count in area.
Protected Member Functions
override int	RespawnTimerCallback (RegionTimer respawnTimer)
	When guards respawn we refresh them, if a patrol guard respawns we call a special function to update leadership.
Properties
Patrol	PatrolGroup `[get, set]`
string	TemplateID `[get, set]`
GameKeepComponent	Component `[get, set]`
DBKeepPosition	Position `[get, set]`
GameKeepHookPoint	HookPoint `[get, set]`
eRealm	ModelRealm `[get, set]`
bool	IsTowerGuard `[get]`
bool	IsPortalKeepGuard `[get]`
override byte	Level `[get, set]`
	We do this because if we set level when a guard is waiting to respawn, the guard will never respawn because the guard is given full health and is then considered alive.
override int	Mana `[get]`
	Guards always have Mana to cast spells.
override int	MaxHealth `[get]`
override int	AttackRange `[get, set]`
	When moving guards have difficulty attacking players, so we double there attack range)
virtual int	AttackRangeDistance `[get]`
	The distance attack range.
bool	CanUseRanged `[get]`
	Method to see if the Guard has been left alone long enough to use Ranged attacks.
bool	BeenAttackedRecently `[get]`
	Has the NPC been attacked recently.. currently 10 seconds.

Detailed Description

Keep guard is gamemob with just different brain and load from other DB table.

Member Function Documentation

override bool DOL.GS.Keeps.GameKeepGuard.AddToWorld ( ) [virtual]

When we add a guard to the world, we also attach an AttackFinished handler We use this to check LOS and range issues for our ranged guards.

Returns:

Reimplemented from DOL.GS.GameNPC.

Reimplemented in DOL.GS.Keeps.GuardCaster, and DOL.GS.Keeps.GuardLord.

static void DOL.GS.Keeps.GameKeepGuard.AttackFinished	(	DOLEvent	e,
		object	sender,
		EventArgs	arguments
	)		`[static]`

We need an event after an attack is finished so we know when players are unreachable by archery.

Parameters:

e
sender
arguments

override int DOL.GS.Keeps.GameKeepGuard.AttackSpeed ( params InventoryItem[] weapon ) [virtual]

Here we set the speeds we want our guards to have, this affects weapon damage.

Parameters:

weapon

Returns:

Reimplemented from DOL.GS.GameLiving.

void DOL.GS.Keeps.GameKeepGuard.ChangeGuild ( )

Change guild of guard (emblem on equipment) when keep is claimed.

override void DOL.GS.Keeps.GameKeepGuard.Delete ( ) [virtual]

Marks this object as deleted!

Reimplemented from DOL.GS.GameNPC.

override void DOL.GS.Keeps.GameKeepGuard.DeleteFromDatabase ( ) [virtual]

Deletes the mob from the database.

Reimplemented from DOL.GS.GameNPC.

override void DOL.GS.Keeps.GameKeepGuard.Die ( GameObject killer ) [virtual]

When guards Die and it isnt a keep reset (this killer) we call GuardSpam function.

Parameters:

killer

Reimplemented from DOL.GS.GameNPC.

Reimplemented in DOL.GS.Keeps.GuardLord.

override double DOL.GS.Keeps.GameKeepGuard.GetArmorAbsorb ( eArmorSlot slot ) [virtual]

Calculates armor absorb level.

Parameters:

slot

Returns:

Reimplemented from DOL.GS.GameLiving.

int DOL.GS.Keeps.GameKeepGuard.GetEnemyCountInArea ( )

Gets the count of enemies in the Area.

Returns:

override IList DOL.GS.Keeps.GameKeepGuard.GetExamineMessages ( GamePlayer player ) [virtual]

Gets the messages when you click on a guard.

Parameters:

player The player that has done the clicking

Returns:

Reimplemented from DOL.GS.GameNPC.

Reimplemented in DOL.GS.Keeps.FrontierHastener.

override string DOL.GS.Keeps.GameKeepGuard.GetPronoun	(	int	form,
		bool	firstLetterUppercase
	)		`[virtual]`

Gets the pronoun for the guards gender.

Parameters:

form	Form of the pronoun
firstLetterUppercase	Weather or not we want the first letter uppercase

Returns:

Reimplemented from DOL.GS.GameNPC.

static void DOL.GS.Keeps.GameKeepGuard.GuardSpam ( GameKeepGuard guard ) [static]

Sends message to guild for guard death with enemy count in area.

Parameters:

guard The guard object

void DOL.GS.Keeps.GameKeepGuard.GuardStartAttackCheckLOS	(	GamePlayer	player,
		ushort	response,
		ushort	targetOID
	)

We only attack if we have LOS.

Parameters:

player
response
targetOID

void DOL.GS.Keeps.GameKeepGuard.GuardStopAttackCheckLOS	(	GamePlayer	player,
		ushort	response,
		ushort	targetOID
	)

If we don't have LOS we stop attack.

Parameters:

player
response
targetOID

override bool DOL.GS.Keeps.GameKeepGuard.IsObjectInFront	(	GameObject	target,
		double	viewangle,
		bool	rangeCheck = `true`
	)		`[virtual]`

Because of Spell issues, we will always return this true.

Parameters:

target
viewangle

Returns:

Reimplemented from DOL.GS.GameObject.

override void DOL.GS.Keeps.GameKeepGuard.LoadFromDatabase ( DataObject mobobject ) [virtual]

Load the guard from the database.

Parameters:

mobobject The database mobobject

Reimplemented from DOL.GS.GameNPC.

void DOL.GS.Keeps.GameKeepGuard.LoadFromPosition	(	DBKeepPosition	pos,
		GameKeepComponent	component
	)

Load the guard from a position.

Parameters:

pos	The position for the guard
component	The component it is being spawned on

Implements DOL.GS.Keeps.IKeepItem.

void DOL.GS.Keeps.GameKeepGuard.MoveToPosition ( DBKeepPosition position )

Move a guard to a position.

Parameters:

position The new position for the guard

Implements DOL.GS.Keeps.IKeepItem.

override void DOL.GS.Keeps.GameKeepGuard.OnAttackedByEnemy ( AttackData ad ) [virtual]

Static archers attack with melee the closest if being engaged in melee.

Parameters:

ad

Reimplemented from DOL.GS.GameLiving.

override bool DOL.GS.Keeps.GameKeepGuard.RemoveFromWorld ( ) [virtual]

When we remove from world, we remove our special handler.

Returns:

Reimplemented from DOL.GS.GameNPC.

override int DOL.GS.Keeps.GameKeepGuard.RespawnTimerCallback ( RegionTimer respawnTimer ) [protected, virtual]

When guards respawn we refresh them, if a patrol guard respawns we call a special function to update leadership.

Parameters:

respawnTimer

Returns:

Reimplemented from DOL.GS.GameNPC.

override void DOL.GS.Keeps.GameKeepGuard.StartAttack ( GameObject attackTarget ) [virtual]

Override for StartAttack which chooses Ranged or Melee attack.

Parameters:

attackTarget

Reimplemented from DOL.GS.GameNPC.

void DOL.GS.Keeps.GameKeepGuard.StopRespawn ( )

Method to stop a guards respawn.

override void DOL.GS.Keeps.GameKeepGuard.WalkTo	(	int	tx,
		int	ty,
		int	tz,
		short	speed
	)		`[virtual]`

Adding special handling for walking to a point for patrol guards to be in a formation.

Parameters:

tx
ty
tz
speed

Reimplemented from DOL.GS.GameNPC.

override void DOL.GS.Keeps.GameKeepGuard.WalkToSpawn ( ) [virtual]

Walk to the spawn point, always max speed for keep guards, or continue patrol.

Reimplemented from DOL.GS.GameNPC.

Property Documentation

override int DOL.GS.Keeps.GameKeepGuard.AttackRange [get, set]

When moving guards have difficulty attacking players, so we double there attack range)

Reimplemented from DOL.GS.GameLiving.

virtual int DOL.GS.Keeps.GameKeepGuard.AttackRangeDistance [get]

The distance attack range.

Reimplemented in DOL.GS.Keeps.GuardArcher, and DOL.GS.Keeps.GuardLord.

bool DOL.GS.Keeps.GameKeepGuard.BeenAttackedRecently [get]

Has the NPC been attacked recently.. currently 10 seconds.

bool DOL.GS.Keeps.GameKeepGuard.CanUseRanged [get]

Method to see if the Guard has been left alone long enough to use Ranged attacks.

Returns:

override byte DOL.GS.Keeps.GameKeepGuard.Level [get, set]

We do this because if we set level when a guard is waiting to respawn, the guard will never respawn because the guard is given full health and is then considered alive.

Reimplemented from DOL.GS.GameNPC.

override int DOL.GS.Keeps.GameKeepGuard.Mana [get]

Guards always have Mana to cast spells.

Reimplemented from DOL.GS.GameNPC.

The documentation for this class was generated from the following file:

C:/Users/Graveen/Documents/Dawn of Light/Svn DoL/GameServer/keeps/Gameobjects/Guards/GameKeepGuard.cs
